Low fuel pressure sensor

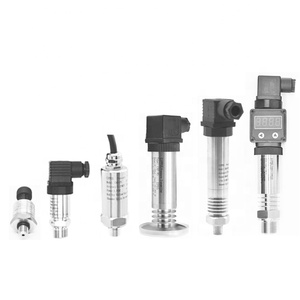

Types of Low Fuel Pressure Sensors

Low fuel pressure sensors, also known as fuel pressure sensors, detect the pressure of fuel within a vehicle's fuel system. They monitor fuel pressure to ensure the engine receives fuel at the required pressure for optimal performance. If fuel pressure drops below the set threshold, the sensor sends a signal to the engine control unit (ECU), indicating a potential issue with the fuel delivery system. The ECU may trigger a warning light on the dashboard and adjust engine parameters or enter a limp mode to protect the engine. There are several types of low fuel pressure sensors, including:

• Strain Gauge Fuel Pressure Sensor:

  It has a diaphragm that bends when pressure is applied. Strain gauges attached to the diaphragm detect the deformation and convert it into an electrical signal. Multiple strain gauges are often arranged in a Wheatstone bridge configuration to improve sensitivity and accuracy. They are commonly used in industrial applications where precise pressure measurement is required.

• Capacitive Fuel Pressure Sensor:

  It consists of two conductive plates separated by a small gap and acts like a capacitor. One plate is exposed to fuel pressure and deforms slightly with pressure changes, varying the gap between the plates and changing the capacitance. A change in capacitance is measured and converted into a fuel pressure reading. Capacitive sensors are highly sensitive and can detect small pressure changes. They are typically used in applications like microelectromechanical systems (MEMS) where precise pressure measurement is required.

• Inductive Fuel Pressure Sensor:

  It uses coils and a magnetic field to sense pressure. The fuel pressure changes the position of a magnetic component relative to the coils, altering the inductance. The change in inductance is measured and converted into a fuel pressure reading. Inductive sensors are contactless and durable, making them suitable for applications where wear and corrosion resistance are required.

• Optical Fuel Pressure Sensor:

  It employs light and optical components to sense changes in pressure. For instance, a pressure change could cause a slight deformation of a membrane, altering the distance between it and a light-reflecting coating. This change could affect the reflected light's intensity or wavelength. A change in light properties is detected and converted into a pressure reading. Optical sensors provide high resolution and sensitivity and can measure small pressure changes.

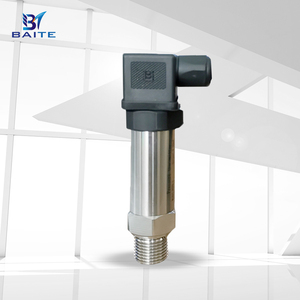

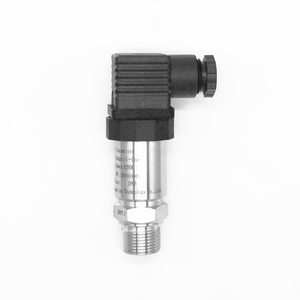

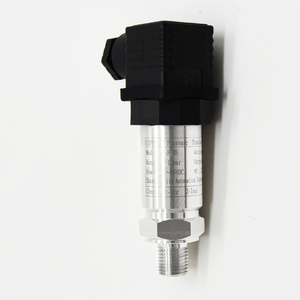

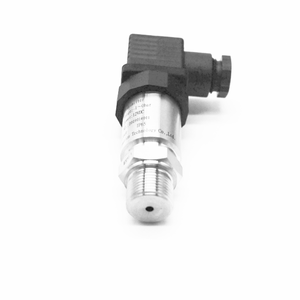

• Piezoresistive Fuel Pressure Sensor:

  It is a type of electrical fuel pressure sensor. It is built on a semiconductor material like silicon. The electrical resistance of the material changes when mechanical stress is applied. The change in resistance is measured and converted into a fuel pressure reading. Piezoresistive sensors are highly sensitive and suitable for applications that require precise pressure measurement.

• Resistive Fuel Pressure Sensor:

  It uses resistors to sense pressure changes. The fuel pressure varying resistance in a resistor element is measured and converted into a fuel pressure reading. They are relatively simple and inexpensive but less sensitive than other sensor types. They are typically used in applications where high precision is not critical.

Specification and maintenance of Low Fuel Pressure Sensor

• Electrical Characteristics

  Power Consumption: Low fuel pressure sensors consume little power to run their internal circuits. This is often less than 100 milliwatts (0.1 watts). Voltage Range: They use a voltage between 5 and 12 volts. This is the same as many other electrical sensors in the vehicle. Output Signal: The sensor sends a signal to the engine control unit (ECU) that shows the fuel pressure level. This signal is usually between 0.5 and 4.5 volts. The exact level depends on the pressure being measured.

• Mechanical Characteristics

  Size and weight: Low fuel pressure sensors are small and light. They are typically 5 cm long and weigh around 50 grams. Construction material: They are made of metals like stainless steel or aluminum. These are strong and can last a long time.

• Sensing Element

  Diaphragm: Inside the sensor, there is a thin membrane (diaphragm) that feels the fuel pressure. This membrane is usually made of metals like silicon or ceramic. It bends a little when the fuel pushes against it. Strain Gauges: The sensor has special gauges (strain gauges) that stretch when the diaphragm moves. This stretching changes electrical resistance. The sensor detects this change and converts it into a signal that shows fuel pressure. The electronics inside the sensor amplify (make stronger) this signal so the ECU can read it better.

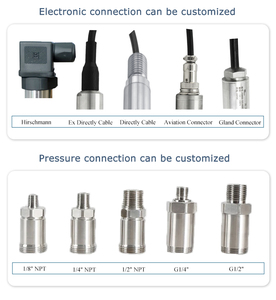

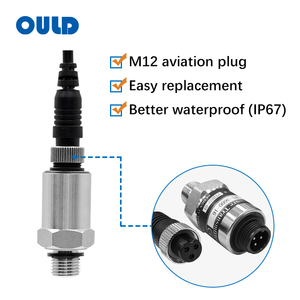

• Electrical Interface

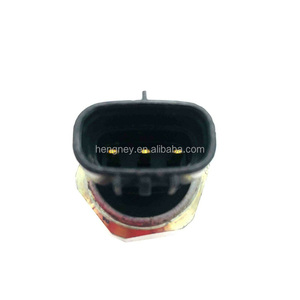

  Pin Connection: Low fuel pressure sensors have small pins (like electrical plugs) that connect to the car's computer system. These are usually 3-5 pins in a row. Communication Protocol: The sensor uses simple electrical signals to send data to other vehicle systems. This is usually done through analog signals. No special digital communication is required.

• Operating Conditions

  Temperature Range: Low fuel pressure sensors can work in extreme temperatures. They can operate in areas between -40 and 125 degrees Celsius. Environmental Protection: These sensors are made to withstand dirt, water, and other environmental factors. They have special coatings and seals to protect the internal components from damage.

Maintenance

Key maintenance practices to ensure low fuel pressure sensors function optimally include:

• Inspect the electrical connections to the low fuel pressure sensor for any signs of damage, corrosion, or looseness. Clean and tighten the connections as needed to ensure a dependable electrical signal.
• Keep the area surrounding the low fuel pressure sensor clean and free of dirt, debris, and moisture. Excessive filth or moisture can affect the sensor's performance and accuracy.
• Check the fuel lines and other associated components for leaks, wear, or damage. Address any issues promptly to prevent low fuel pressure readings resulting from system failures.
• Follow the manufacturer's recommended maintenance schedule for fuel system components. Regular maintenance, such as fuel filter replacements, can help avoid low fuel pressure issues and extend sensor life.
• Be mindful of the quality of fuel used in the vehicle. Using low-quality fuel with high dirt and contaminants levels can affect the fuel system's performance and lifespan, including the low fuel pressure sensor.

How to Choose Low Fuel Pressure Sensor

• Application:

  Consider the intended application of the vehicle or equipment. Different applications, such as gasoline or diesel engines, have varying requirements for fuel pressure sensors. Ensure the sensor is suitable for the specific fuel type and engine configuration.

• Compatibility:

  Check the compatibility of the sensor with the vehicle's make, model, and engine specifications. Consult the vehicle's service manual or expert technician to ensure the sensor will work seamlessly with the fuel system and engine control unit (ECU).

• Quality and Reliability:

  Low fuel pressure sensor is critical for the engine's performance and emissions control. Choose sensors from reputable manufacturers known for producing high-quality and reliable components. Quality sensors are more likely to provide accurate readings and withstand harsh fuel system conditions.

• Wiring and Connectors:

  Inspect the wiring harness and connectors of the old or replaced sensor. Ensure that the new sensor's wiring and connectors are compatible with the vehicle's system. Check for any damage or corrosion in the wiring and connectors, as these issues can lead to sensor problems.

• Price:

  Consider the budget for purchasing a fuel pressure sensor. While it's essential to choose a sensor within the budget, don't compromise on quality. Low-cost sensors from unknown brands may lead to more significant problems and expenses in the long run due to their unreliability.

• Warranty and Support:

  Check the warranty offered by the manufacturer or supplier of the fuel pressure sensor. A more extended warranty period indicates the manufacturer's confidence in the product's durability. Additionally, consider the availability of customer support and technical assistance in case of any issues.

• Reviews and Recommendations:

  Research online reviews and seek recommendations from other vehicle owners, mechanics, or automotive professionals. Learning about others' experiences with a particular sensor can provide valuable insights into its performance and reliability.

• Installation:

  Consider whether the sensor will be self-installed or if a professional mechanic will install it. If unsure about the installation process, choose a sensor that comes with detailed installation instructions or consider having it installed by a qualified mechanic to ensure proper fitting and calibration.

How to DIY and Replace Low Fuel Pressure Sensor

The low-pressure fuel sensor is a crucial part of the vehicle's fuel system. Its primary work is to monitor the fuel pressure levels in the fuel system and send the readings to the engine control unit (ECU). If the fuel pressure drops below the desired level, the sensor will trigger a warning signal. The warning signal alerts the driver through the check engine light or warning message on the dashboard. The vehicle may also enter limp mode to protect the engine from damage due to low fuel pressure.

When the low fuel pressure sensor is faulty, it can cause various issues with the engine performance. These issues can range from poor fuel efficiency to engine misfires and, in some cases, even trigger the check engine light. Replacing the sensor can help resolve these issues and restore the engine performance.

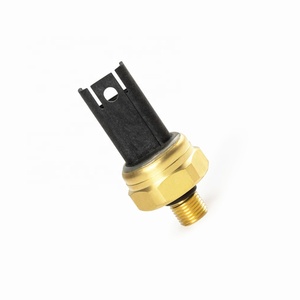

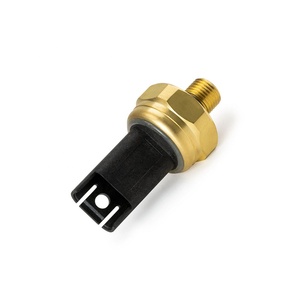

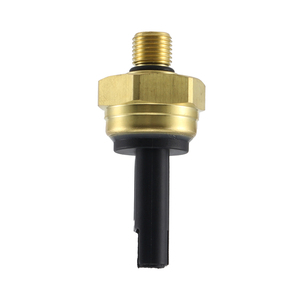

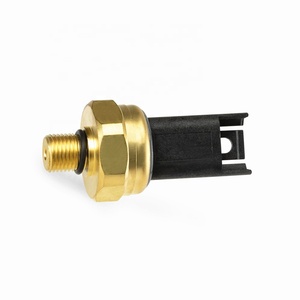

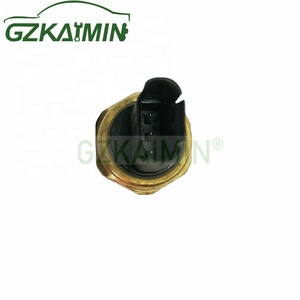

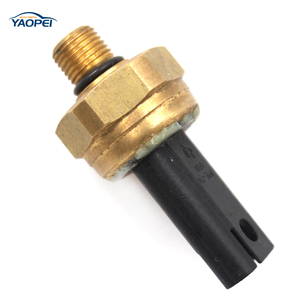

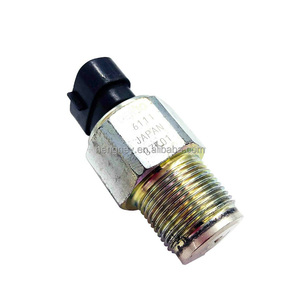

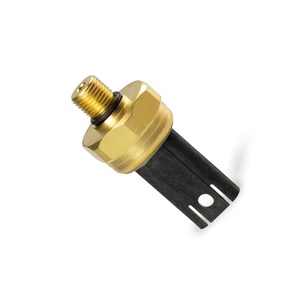

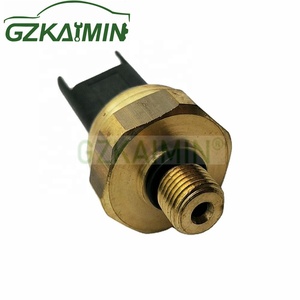

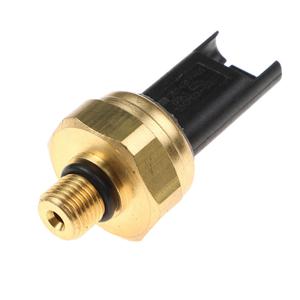

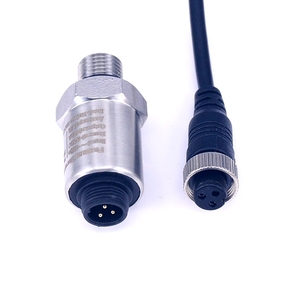

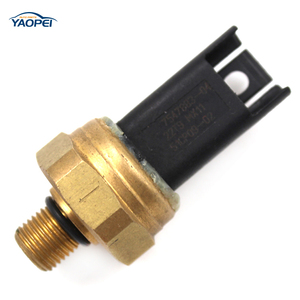

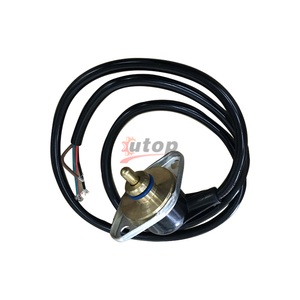

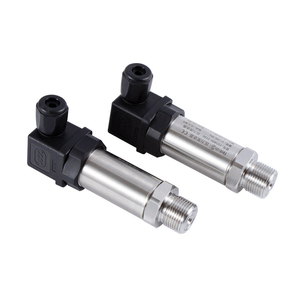

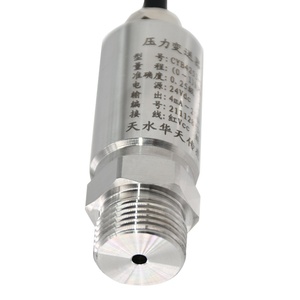

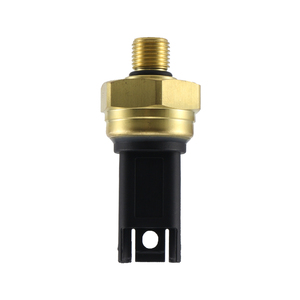

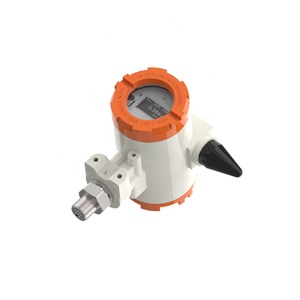

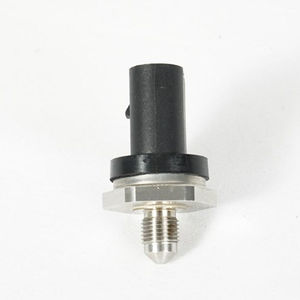

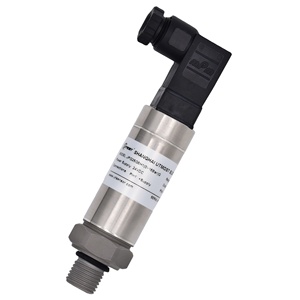

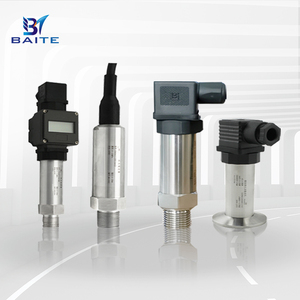

Before replacing the sensor, it is essential to know how it looks and where it is located. The sensor's appearance may vary depending on the vehicle model and engine type. Generally, it is a small cylindrical or rectangular-shaped device with an electrical connector and a pressure port. The sensor is usually mounted on the fuel rail or in the fuel line near the engine.

Here is a step-by-step guide on how to replace the low fuel pressure sensor:

• Gather the necessary tools: Before starting the replacement process, ensure you have all the necessary tools. These include a wrench set, socket set, pliers, and a new low fuel pressure sensor. It is also advisable to wear safety glasses and gloves for added protection.
• Locate the low fuel pressure sensor: First, turn off the engine and open the hood. Then, locate the fuel rail or fuel line where the sensor is mounted. Disconnect the battery: For added safety, disconnect the battery before working on the fuel system. This will help prevent any electrical shorts or sparks.
• Remove the electrical connector: Use pliers to remove the connector from the sensor. Be careful not to damage the wiring or the connector.
• Use a wrench or socket to remove the old sensor from the fuel rail or line. Then, clean the mounting surface to remove any debris or dirt.
• Install the new sensor: Carefully thread the new sensor into the fuel rail or line. Then, tighten it securely using a wrench or socket. Be careful not to over-tighten, as this can damage the sensor or the fuel rail.
• Reconnect the electrical connector: Press the connector firmly onto the sensor. Make sure it is securely attached to ensure proper functioning.
• Reconnect the battery: Reconnect the battery and start the engine. Check for any fuel leaks around the sensor and the fuel rail or line.

If there are no fuel leaks, the low fuel pressure sensor replacement is successful. The vehicle's engine performance should improve within a short time. In case of persistent issues, consult a qualified mechanic for further assistance.

Q and A

Q1: What is the main cause of low fuel pressure?

A1: Several factors can cause low fuel pressure. Issues with the fuel pump, such as wear and tear, can lead to insufficient fuel delivery. Blockages or restrictions in the fuel lines can impede fuel flow, while dirty fuel injectors may struggle to deliver fuel at the required pressure. Additionally, problems with the fuel pressure regulator, such as a malfunctioning diaphragm or faulty adjustments, can result in low fuel pressure.

Q2: How does a low fuel pressure sensor work?

A2: A low fuel pressure sensor detects changes in fuel pressure using a strain gauge or piezoelectric crystal. These sensors convert the mechanical stress caused by pressure changes into electrical signals, which the engine control unit (ECU) can interpret. The ECU uses these signals to monitor fuel pressure and make necessary adjustments to fuel delivery for optimal engine performance.

Q3: Can a low fuel pressure sensor be repaired?

A3: Unfortunately, low fuel pressure sensors are typically not repairable. When a sensor fails or becomes faulty, it is usually necessary to replace the entire sensor unit. Attempting to repair a sensor is not recommended, as it can lead to inaccurate readings and potential engine performance issues.

Q4: Can I drive a car with a faulty low fuel pressure sensor?

A4: While it may be possible to drive a car with a faulty low fuel pressure sensor, it is not advisable. Inaccurate fuel pressure readings can lead to engine performance issues, such as poor acceleration, rough idling, or decreased fuel efficiency. Prolonged driving with a faulty sensor can potentially cause damage to other engine components. It is best to have the sensor checked and replaced if necessary as soon as possible.

Q5: What are the symptoms of a low fuel pressure sensor?

A5: The symptoms of a low fuel pressure sensor can include engine misfires, loss of power, rough idling, decreased fuel efficiency, and difficulty starting the engine. In some cases, the check engine light may also illuminate, indicating a problem with the fuel system. However, these symptoms can also be caused by other issues within the fuel system or engine components.
